# Flavours of free applicative functors

Published on

Six months ago Tom Ellis wrote the article Towards Free Applicatives, where he described his implementation of a free applicative functor. In the reddit discussion of that article a few more implementations were suggested.

In this article I would like to look in more detail how these implementations work and how they differ from each other.

The implementations are rewritten in a common style where possible,
to highlight the differences and similarities. Since a picture is worth
a thousand words, for each implementation there’s a diagram showing how
a simple applicative expression
`f <$> lift ax <*> lift ay <*> lift az`

is
represented.

## Notational conventions

`x`

,`y`

,`z`

,`f`

— simple (non-functorial) values`ax`

,`ay`

,`az`

— values of the base functor type`tx`

,`ty`

,`tz`

— values of the free applicative functor type

### On the diagrams

`F`

— base functor`Tx`

,`Ty`

,`Tz`

— inner types of functorial values (e.g.`ax`

has type`F Tx`

). The function`f`

has type`Tx -> Ty -> Tz -> Tr`

.- A square denotes unit (i.e.
`()`

) as a type, term and pattern.

## Ørjan Johansen’s free applicative

```
data Free f a where
Pure :: a -> Free f a
Ap :: Free f (a -> b) -> f a -> Free f b
instance Functor f => Functor (Free f) where
fmap f (Pure x) = Pure $ f x
fmap f (Ap tx ay) = Ap ((f .) <$> tx) ay
instance Functor f => Applicative (Free f) where
pure = Pure
<*> Pure y = fmap ($ y) tx
tx <*> Ap ty az = Ap ((.) <$> tx <*> ty) az
tx
lift :: f a -> Free f a
= Ap (Pure id)
lift
lower :: Applicative f => Free f a -> f a
Pure x) = pure x
lower (Ap tx ay) = lower tx <*> ay lower (
```

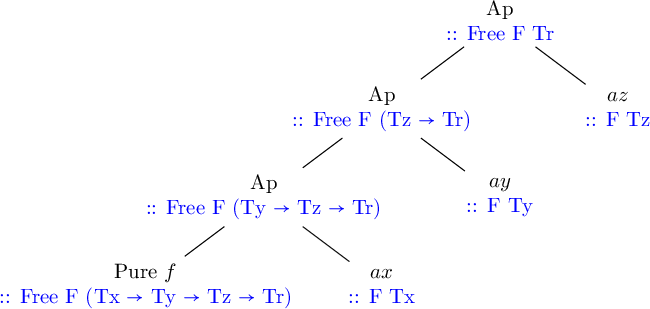

The tree grows to the left. This can be easily seen on the diagram,
and follows from the fact that the first argument of `Ap`

is
a free applicative itself and the second is not. (How the tree grows
depends, obviously, on the order of `Ap`

’s arguments. The
convention here is that `Ap`

’s arguments are in the
applicative order, so that we can meaningfully talk about the tree’s
associativity.)

`<*>`

pattern-matches on its right argument,
effectively re-associating the tree to the left.

Note that `Free f a`

is an applicative functor regardless
of `f`

. It stores `f`

-values in the tree without
changes. We’ll see later that this is not always the case.

## Twan van Laarhoven’s free applicative

```
data Free f a where
Pure :: a -> Free f a
Ap :: Free f (a -> b) -> f a -> Free f b
instance Functor (Free f) where
fmap f (Pure x) = Pure $ f x
fmap f (Ap tx ay) = Ap ((f .) <$> tx) ay
instance Applicative (Free f) where
pure = Pure
Pure f <*> tx = fmap f tx
Ap tx ay <*> tz = Ap (flip <$> tx <*> tz) ay
lift :: f a -> Free f a
= Ap (Pure id)
lift
lower :: Applicative f => Free f a -> f a
Pure x) = pure x
lower (Ap tx ay) = flip id <$> ay <*> lower tx lower (
```

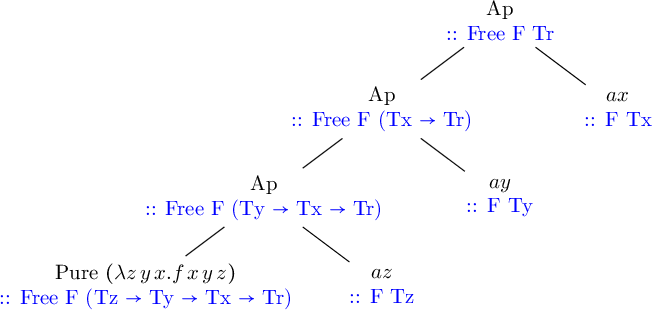

This is a variation of Ørjan’s implementation. As can be seen from the diagrams, the only difference is that it stores the values in the opposite order, and modifies the function to accept them in that order.

As in Ørjan’s implementation, the tree grows to the left, but
`<*>`

now pattern-matches on its left argument, in
order to push its right argument to the leftmost position in the
tree.

The way `<*>`

does pattern matching directly affects
its algorithmic complexity. Ørjan’s implementation is linear in the size
of its right argument and thus works better with left-associated
applicative expressions. Twan’s version is dual: it is linear in the
size of its left argument and works better with right-associated
expressions. In both cases, unfortunate nesting increases complexity
from linear to quadratic.

Also pay attention to the `lower`

function. It has to take
care of the effects — the right subtree must be «executed» before the
left subtree in order to restore the original value faithfully.

## Paolo Capriotti’s free applicative

```
data Free f a where
Pure :: a -> Free f a
Ap :: f (a -> b) -> Free f a -> Free f b
instance Functor f => Functor (Free f) where
fmap f (Pure x) = Pure $ f x
fmap f (Ap ax ty) = Ap (fmap (f.) ax) ty
instance Functor f => Applicative (Free f) where
pure = Pure
Pure f <*> tx = fmap f tx
Ap ax ty <*> tz = Ap (fmap uncurry ax) ((,) <$> ty <*> tz)
lift :: Functor f => f a -> Free f a
= Ap (const <$> ax) (Pure ())
lift ax
lower :: Applicative f => Free f a -> f a
Pure x) = pure x
lower (Ap ax ty) = ax <*> lower ty lower (
```

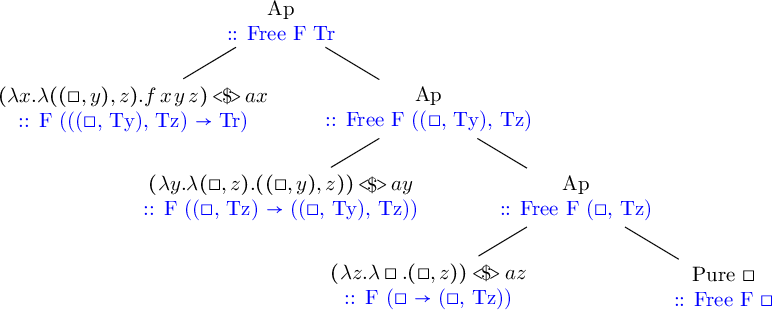

The diagram looks more complicated here. The first thing to notice is
that the tree here grows to the right, unlike in the previous versions.
The actual application of our `f`

function happens now near
the top of the tree rather than at the bottom. To make that possible,
the function has to be converted to the uncurried form.

All left nodes except the topmost one are functions (wrapped in the
base functor). All they do is take a nested tuple of the arguments
downstream and add their own value to that tuple. The topmost left node
already knows the final required argument, `ax`

, and simply
applies the uncurried function to the tuple.

The functorial values are stored in a modified form, which requires
`f`

to be an actual `Functor`

. (But note that any
`f`

can be turned into a functor using Yoneda.)

## Tom Ellis’s free applicative

The code here is quite different from the previous versions, so I
decided to reproduce it verbatim (except the `lift`

and
`lower`

functions, which I’ve added myself).

```
data ChainA f a b = Single (f (a -> b)) | forall c. Many (f (c -> b)) (ChainA f a c)
instance Functor f => Functor (ChainA f a) where
fmap f (Single t) = Single (fmap (f .) t)
fmap f (Many g v) = Many (fmap (f .) g) v
chain :: ChainA f b c -> ChainA f a b -> ChainA f a c
Single t) v = Many t v
chain (Many t ts) v = Many t (chain ts v)
chain (
data FreeA f a = Pure a | ChainA (ChainA f () a)
instance Functor f => Functor (FreeA f) where
fmap f (Pure a) = Pure (f a)
fmap f (ChainA a) = ChainA (fmap f a)
instance Functor f => Applicative (FreeA f) where
pure = Pure
Pure f <*> g = fmap f g
<*> Pure g = fmap ($ g) f
f ChainA f <*> ChainA g = ChainA $ chain (pullUnit f) g
pullUnit :: Functor f => ChainA f () (b -> c) -> ChainA f b c
= removeUnit . pull
pullUnit
pass :: Functor f => ChainA f a b -> ChainA f (a,c) (b,c)
Single t) = Single (fmap (\f -> \(a,c) -> (f a, c)) t)
pass (Many t ts) = Many (fmap (\f -> \(a,c) -> (f a, c)) t) (pass ts)
pass (
pull :: Functor f => ChainA f a (b -> c) -> ChainA f (a,b) c
Single t) = Single (fmap uncurry t)
pull (Many t ts) = Many (fmap uncurry t) (pass ts)
pull (
removeUnit :: Functor f => ChainA f ((), a) b -> ChainA f a b
Single t) = Single (fmap (\f -> \a -> f ((),a)) t)
removeUnit (Many t ts) = Many t (removeUnit ts)
removeUnit (
lift :: Functor f => f a -> FreeA f a
= ChainA $ Single $ const <$> ax
lift ax
lower :: Applicative f => FreeA f a -> f a
Pure x) = pure x
lower (ChainA chain) = lowerChain chain <*> pure ()
lower (where
lowerChain :: Applicative f => ChainA f x y -> f (x -> y)
Single ax) = ax
lowerChain (Many ax ty) = (.) <$> ax <*> lowerChain ty lowerChain (
```

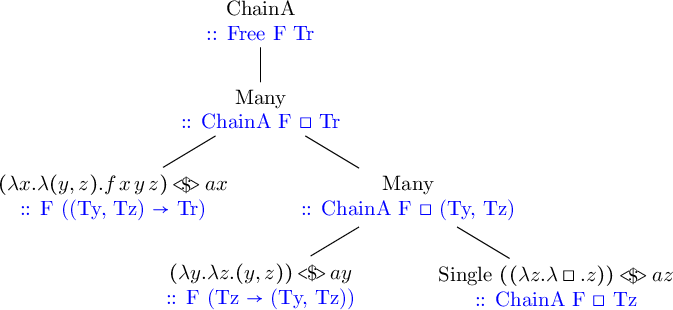

Despite the superficial dissimilarity of the code, this is really a variation on Paolo’s implementation. The only difference is that unit is not passed as a part of the nested tuples. Two-level types and auxiliary functions are really just the cost of eliminating that unit.

## Which one to use?

The free package currently uses the Twan’s version, which is the reason of the reverse effect that I mentioned in the previous article. Edward Kmett points out that the reason for choosing Twan’s implementation is that you can see the «next instruction» in O(1) when walking left to right, which is most common.

So start with that one, but also look at your problem (how exactly you are going to analyze the free applicative) and see if any of the alternatives fit better.
